Draw.cs ​

This class extends the existing Debug.Draw methods to include

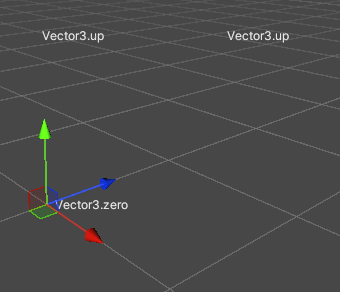

Label ​

example

This can only be called from OnDrawGizmos() or OnDrawGizmosSelected() as this uses the UnityEditor.Handles class to draw the text.

  • Offset: This represents the distance the text should move to the right. You can apply a negative number to move the label to the left.
csharp
private void OnDrawGizmos()
{
    Draw.Label(Vector3.zero, "Vector3.zero");
    Draw.Label(Vector3.up, "Vector3.up", offset: 0f);
    Draw.Label(Vector3.up, "Vector3.up", offset: 1f);
}

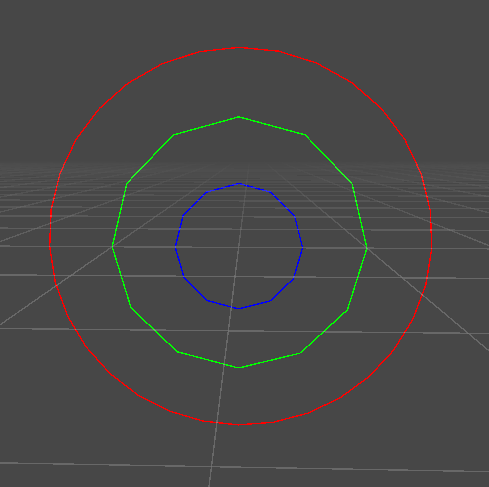

Circle ​

NOTE This currently only faces the forward direction

example

csharp
Draw.Circle(Vector3.zero, Color.green);
Draw.Circle(Vector3.zero, Color.blue, radius: 0.5f);
Draw.Circle(Vector3.zero, Color.red, radius: 1.5f, segments: 32);

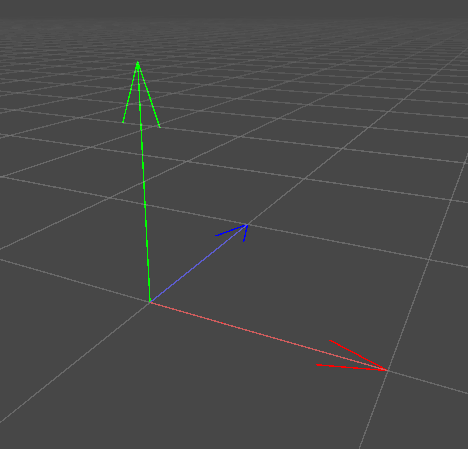

Arrow ​

example

csharp
Draw.Arrow(Vector3.zero, direction: Vector3.up, Color.green);
Draw.Arrow(Vector3.zero, direction: Vector3.forward, Color.blue);
Draw.Arrow(Vector3.zero, direction: Vector3.right, Color.red);
